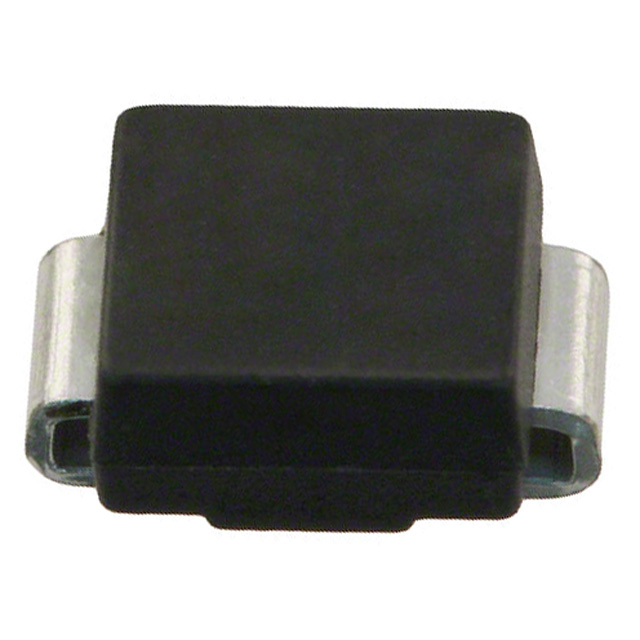

The Trisil SMP100LC series low capacitance TVS Diode for telecom equipment protection. It is designed for the protection of high data rate communication equipment. The low capacitance of the devices avoids any distortion of the signal and is compatible with digital transmission line cards (xDSL, ISDN). The device is tested and confirmed compatible with Cooper Bussmann Telecom Circuit Protector TCP 1.25A. It is suitable for any sensitive equipment requiring protection against lightning strikes and AC power faults. It is dedicated to central office protection as they comply with the most stressful standards.
Bidirectional crowbar protection
Voltage range from 8 V to 400 V
Low capacitance from 20pF to 45pF @ 2V
2µA Maximum low leakage current IR
150mA Minimum holding current IH
100A (10/1000µs) Repetitive peak pulse current IPP
