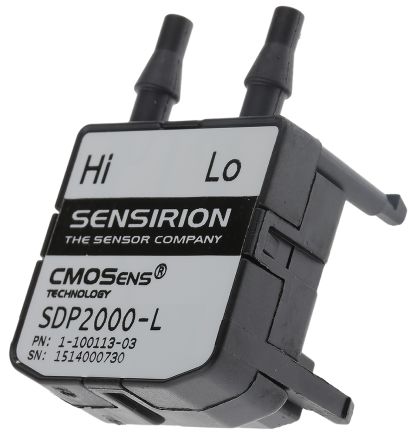

The SDP2000 series differential Pressure Sensor for air cover the following measurement ranges -5 to 125Pa (0.5-inch H²O), -20 to 500Pa (2-inch H²O) and -100 to 3500Pa (14-inch H²O). The devices are supplied with 5V and provide a 0.25 to 4V output. Although the output of the differential pressure sensor is analog, the internal linearization and temperature compensation is performed digitally. This results in a superior accuracy, outstanding resolution (up to 0.05Pa) and lowest temperature dependence. Since fully exchangeable just a few external electronic components around the device make a high quality differential sensor transmitter with e.g. a 0 to 10V output or other interfaces. Its leading performance is based on Sensirion"s proprietary CMOSens® sensor technology which combines the sensor element with amplification and A/D conversion on one single silicon chip. The differential pressure is measured by a thermal sensor element.
Offset and hysteresis free
Excellent accuracy and reproducibility even below 10Pa
Fully calibrated and temperature compensated
Linear or square root extracted output characteristics
