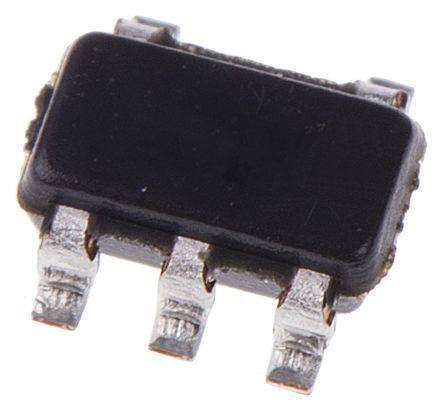

The SN74AHC1G08DBVR is a single two input positive AND gate in 5 pin SOT-23 package. This device has a wide operating VCC range of 2V to 5.5V which allows it to be used in broad range of systems. The low propagation delay allows fast switching and higher speeds of operation. In addition, the low power consumption makes this device a good choice for battery power sensitive applications. The SN74AHC1G08 performs boolean function and schmitt trigger action at all inputs makes circuit tolerant for slower input rise and fall time.
Maximum propagation delay (tpd) of 7ns at 5V
Low power consumption (10µA maximum Icc)
±8mA output drive at 5V
Latch-up performance exceeds 250mA per JESD 17
ESD protection exceeds JESD 22
Operating temperature range from -55°C to 125°C
This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
