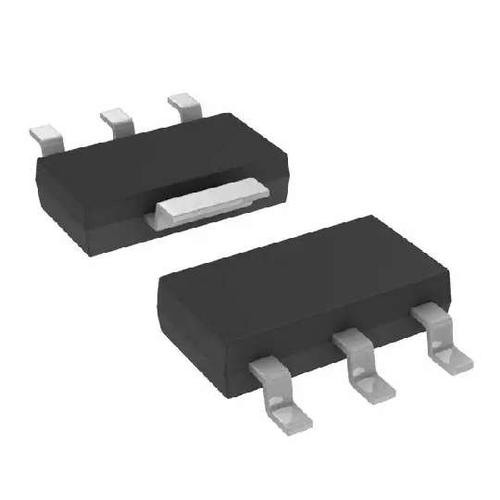

SOT--223 PACKAGE HIGH CURRENT NPN SILICON TRANSISTOR SURFACE MOUNT
This NPN Silicon Epitaxial transistor is designed for use in industrial and consumer applications. The device is housed in the
SOT--223 package which is designed for medium power surface mount applications.
SOT--223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
Features
High Current: 2.0 A
The SOT--223 package can be soldered using wave or reflow
Available in 12 mm Tape and Reel
Use PZT651T1 to order the 7 inch/1000 unit reel
Use PZT651T3 to order the 13 inch/4000 unit reel
PNP Complement is PZT751T1
These Devices are Pb--Free, Halogen Free/BFR Free and are RoHS Compliant
