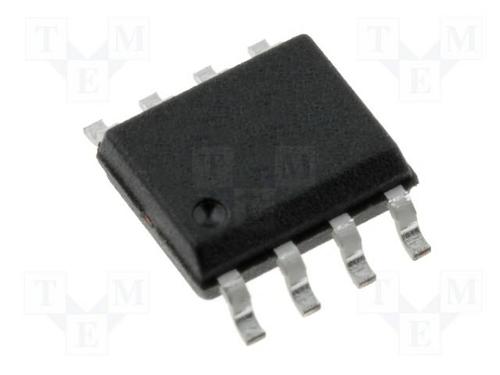

The OPA551UA is an Operation Amplifier with high-voltage (60V) and high-current (200mA) capability. The OPA551UA is unity-gain stable and features high slew rate (15Vµs) and wide bandwidth (3MHz). The OPA551UA is optimized for gains of 5 or greater and offers higher speed with a slew rate of 24V/µs and a bandwidth of 12MHz. This laser-trimmed, monolithic integrated circuit provides excellent low-level accuracy along with high output swing. High performance is maintained as the amplifier swings to its specified limits. The OPA551UA is internally protected against over-temperature conditions and current overloads. The thermal shutdown indicator flag provides a current output to alert the user when thermal shutdown has occurred.
200mA Continuous high output current
14nV/√Hz Low noise
Thermal shutdown and output current-limited protection
Thermal shutdown indicator
2V from rail wide output swing
15V/µs Fast slew rate
3MHz Wide bandwidth
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
