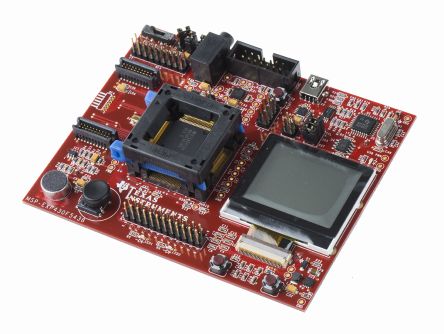

MSP430F5438 is a Experimenter Board development platform for the latest generation MSP430 MCUs. It features a 100 pin socket which supports the MSP430F5438 and other devices with similar pinout. The socket allows for quick upgrades to newer devices or quick applications changes. It is compatible with many TI low-power RF wireless evaluation modules such as the CC2520EMK. The Experimenter Board helps designers quickly learn and develop using the new F5xx MCUs, which provide the industry"s lowest active power consumption, more memory and leading integration for applications such as energy harvesting, wireless sensing and automatic metering infrastructure (AMI). A TI Flash Emulation Tool, like the MSP-FET430UIF, is required to program and debug the MSP430 devices on the experimenter board.
Based on new MSP430F5438 MCU for ultra-low power designs that need enhanced functionality
Fast low power wireless development with EZ430-RF2500 tool, out-of-the-box platform for Z-Stack Pro
138 x 110 dot matrix LCD for rich user interfaces and fun games
Multiple input/output options allow for fast system development
JTAG headers make the device accessible for programming and debugging
Compatible with Code Composer Essentials, Free 16kB IDE
Board design files are open source (SLAC228) and created using Eagle CAD software
JTAG headers also helps in communicating between F5438 MCU and other external devices
