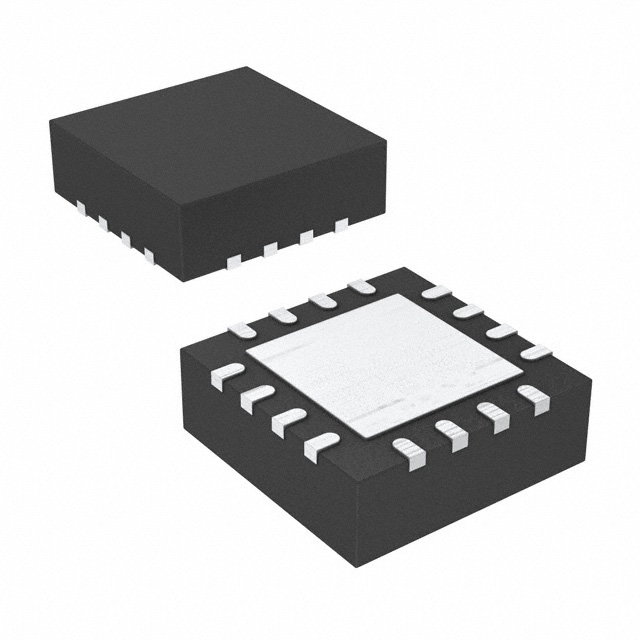

* Low Supply Voltage Range: 1.8 V to 3.6 V * Ultra-Low Power Consumption * Active Mode: 220 µA at 1 MHz, 2.2 V * Standby Mode: 0.5 µA * Off Mode (RAM Retention): 0.1 µA * Five Power-Saving Modes * Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs * 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time * Basic Clock Module Configurations * Internal Frequencies up to 16 MHz With Four Calibrated Frequencies * Internal Very-Low-Power Low-Frequency (LF) Oscillator * 32-kHz Crystal * External Digital Clock Source * One 16-Bit Timer_A With Three Capture/Compare Registers * Up to 16 Capacitive-Touch Enabled I/O Pins * Universal Serial Interface (USI) Supporting SPI and I2C * 10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan (MSP430G2x52 Only) * On-Chip Comparator for Analog * Brownout Detector * Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse * On-Chip Emulation Logic With Spy-Bi-Wire Interface * Package Options * TSSOP: 14 Pin, 20 Pin * PDIP: 20 Pin * QFN: 16 Pin
