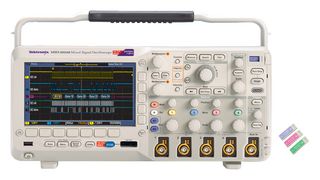

The MSO2024B from Tektronix is a MSO2000B series mixed signal oscilloscope with 200MHz bandwidth, 4 analogue channels and 16 digital channels. The MSO2024B mixed signal oscilloscope provides a complete set of triggers including runt, logic, pulse width/glitch, setup/hold violation, serial packet and parallel data. The oscilloscope has up to 1Mpoint record length so user can capture many events of interest, even thousands of serial packets in a single acquisition for further analysis while maintaining high resolution to zoom in on fine signal details. It features automated serial and parallel bus analysis, FilterVu variable low-pass filter and innovative Wave Inspector controls and provides feature-rich tools for the user to simplify and speed debug of complex design.
1GS/s sample rate on all channels
Rise time of 2.1ns and 5,000wfm/s maximum waveform capture rate
29 automated measurements and FFT analysis for simplified waveform analysis
Automated serial triggering, decode and search options for I2C, SPI, CAN, LIN and RS232/422/485/UART
TeKVPI probe interface supports active, differential, current probes for automatic scaling & units
USB 2.0 host port on the front panel for quick and easy data storage
USB 2.0 host port on the front panel for quick and easy data storage
Optional 10/100 Ethernet port for network connection and video-out port
7inch (180mm) wide screen TFT LCD colour display
Small footprint of 5.3inch (134mm) deep and lightweight of 3.6Kg
