**MPA - Precision and versatility up to 1,007 mm**

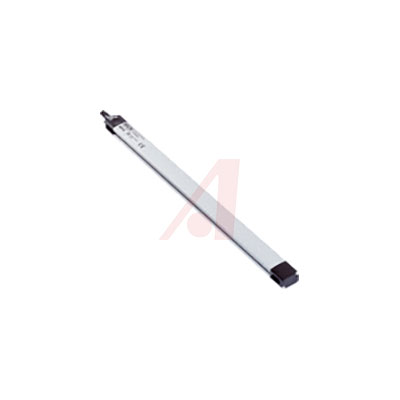

The MPA is a precision magnetic positioning sensor with analog output, offering an economical alternative to potentiometers or other displacement sensors. The system is impressive with significantly reduced time and effort required for installation. The MPA is available for measured lengths between 107 mm to 1,007 mm and can be directly mounted on a host of pneumatic drives or deployed with a separate position transducer thanks to its universal housing with fastening adapters. An intuitive capacitive Teach Pad as well as the 4-color LED display means the sensor can be commissioned quickly and easily.
**At a Glance**
* Analog positioning sensor, can be mounted on a vast range of cylinders thanks to its universal housing with adapters
* Measured lengths from 107 mm to 1,007 mm in 36 mm increments
* Output signals 4 mA to 20 mA as well as 0 V to 10 V in a single sensor
* Linearity of 0.5 mm (typ.) at a sampling rate of 1.15 ms (typ.), and a resolution of 0.06 mm (typ.)
* Electric setting of zero point and end point via teach pushbutton
