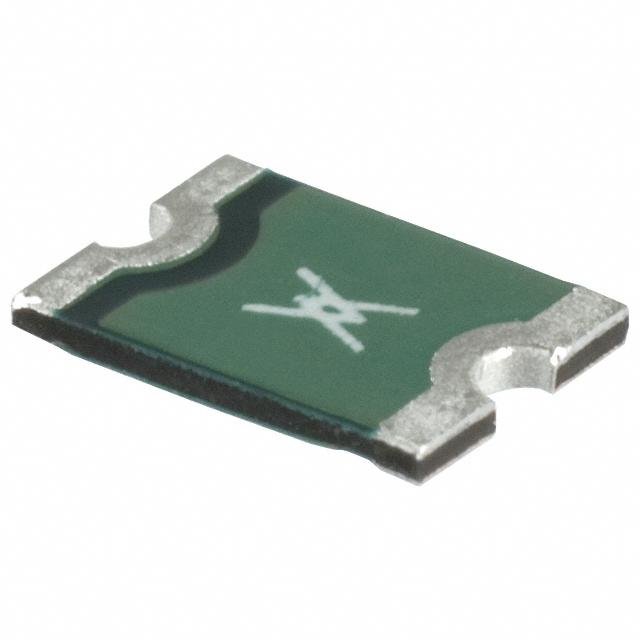

The MINISMDC050F-2 from TE Connectivity is a surface mount PolySwitch resettable device in 45mm x 32mm size. Its smaller size helps to save board space and cost. It optimizes design flexibility and compatible with high volume electronics assembly.
UL, CSA and TUV approved
Higher voltage ratings allow use in new applications
Hold current of 0.5A at room temperature
Maximum voltage of 24V
Trip current of 1A at room temperature
Maximum current of 100A
Maximum resistance of 1ohm (post trip)
Maximum time to trip is 0.15sec
Maximum power dissipation of 0.8W
Operating temperature range from -40°C to 85°C
This device is intended for protection against overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
Operation in circuits with a large inductance can generate circuit voltage (Ldi/dt) above rated voltage of device.
