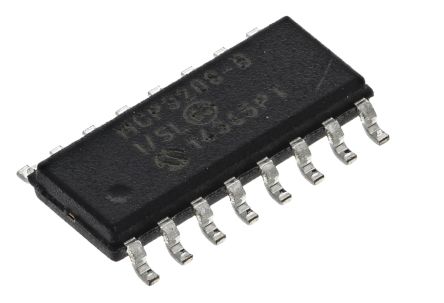

The MCP3208-BI/SL is a 12-bit Analogue-to-Digital Converter with SPI serial interface combines high performance and low power consumption. The MCP3208 features a successive approximation register (SAR) architecture and an industry-standard SPI™ serial interface, allowing 12-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3208 features 100k samples/second, 8 input channels, low power consumption (5nA typical standby, 400µA maximum active). Applications for the MCP3208 includes data acquisition, multi-channel data loggers and robotics.
12-bit Resolution
Four single-ended inputs
SPI interface
±1 LSB DNL
±1 LSB INL
100kSPS Sample
On-chip sample and hold
SPI serial interface (modes 0,0 and 1,1)
Low power CMOS technology
ESD sensitive device, take proper precaution while handling the device.
