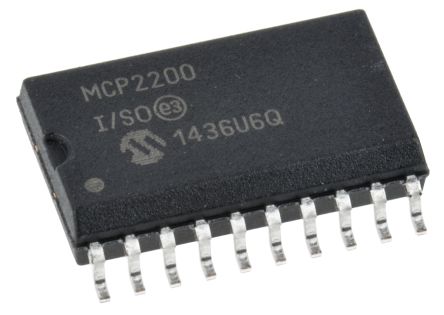

The MCP2200-I/SO is a USB to UART serial converter which enables USB connectivity in applications that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200-I/SO also has 256 bytes of integrated user EEPROM.
Supports full-speed USB (12 Mb/s)
Implements USB protocol composite device:
128 byte buffer to handle data throughput at any UART baud rate
Fully configurable VID and PID assignments, and string descriptors
Bus powered or self-powered
USB Driver and Software Support
Configuration utility for initial configuration Universal Asynchronous Receiver/Transmitter (UART)
Responds to SET LINE CODING commands to dynamically change baud rates
Supports baud rates: 300-1000k
Hardware flow control
UART signal polarity option
Eight general purpose I/O pins
256 bytes of user EEPROM
USB activity LED outputs (TxLED and RxLED)
SSPND output pin
USBCFG output pin (indicates when the enumeration is completed)
