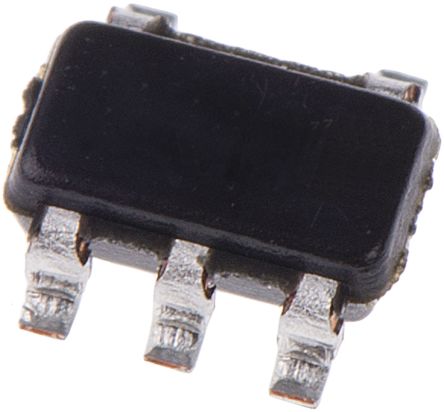

The MCP1804T-3302I/OT is a CMOS low dropout Voltage Regulator with shutdown can deliver up to 150mA of current while consuming only 50µA of quiescent current (typical, 1.8V = VOUT = 5V). The input operating range is specified from 2 to 28V. The MCP1804 is capable of delivering 100mA with only 1300mV (typical) of input to output voltage differential (VOUT = 3.3V). The output voltage tolerance of the MCP1804 at 25°C is a maximum of ±2%. Line regulation is ±0.15% typical at +25°C. The LDO input and output is stable with 0.1µF of input and output capacitance. Ceramic, tantalum or aluminium electrolytic capacitors can all be used for input and output. Over-current limit with current fold back to 40mA (typical) provides short-circuit protection. A shutdown (SHDN) function allows the output to be enabled or disabled. When disabled, the MCP1804 draws only 0.01µA of current (typical).
150mA Output current
50µA Typical quiescent current
0.01µA Typical shutdown current
Output voltages from 1.8 to 18V in 0.1V increments
±2% Output voltage accuracy
Stable with ceramic output capacitors down to 0.1µF
Low dropout voltage, 260mV typical at 20mA, VR = 3.3V
Current limit protection with current fold back
50dB Typical at 1kHz high PSRR
ESD sensitive device, take proper precaution while handling the device.
