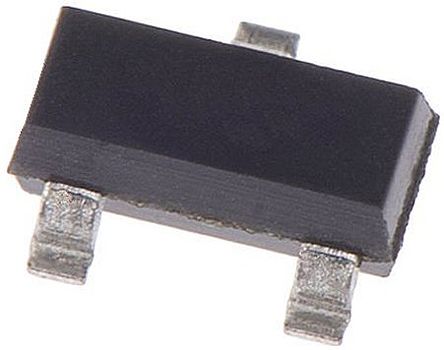

The MCP1701AT-3302I/CB is a CMOS low-dropout Positive Voltage Regulator that can deliver up to 250mA of current while consuming only 2µA of quiescent current (typical). The input operating range is specified up to 10V, making it ideal for lithium-ion (one or two cells), 9V alkaline and other two and three primary cell battery-powered applications. The MCP1701A is capable of delivering 250mA with an input-to-output voltage differential (dropout voltage) of 650mV. The low-dropout voltage extends the battery operating lifetime. It also permits high currents in small packages when operated with minimum VIN - VOUT differentials. The MCP1701A offers improved start-up and transient response.
2µA Typical quiescent current
Input operating voltage up to 10V
Low dropout voltage - 120mV (typical) at 100mA, 380mV (typical) at 200mA
250mA (VOUT = 5.0V) High output current
2% (maximum) High-accuracy output voltage
100ppm/C Low temperature drifting
0.2%/V Excellent line regulation
Short-circuit protection
ESD sensitive device, take proper precaution while handling the device.
