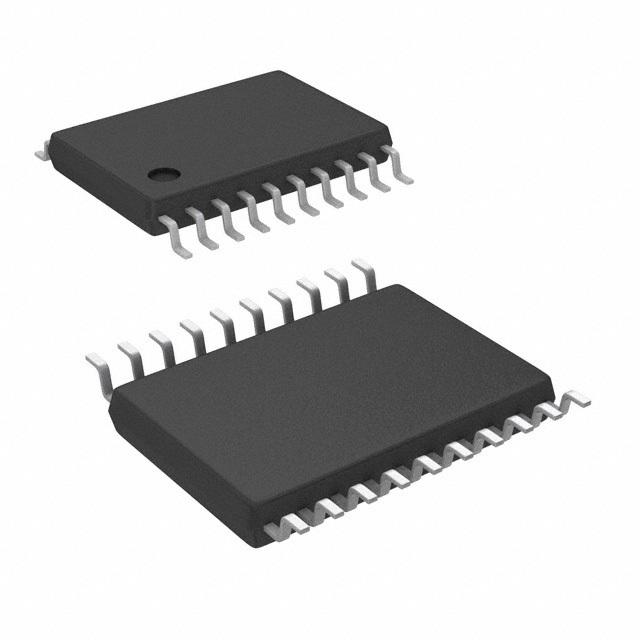

The MC74LVX244 is an advanced high speed CMOS non−inverting 3−state octal bus buffer and has two active low output enables. It is also designed to work with 3−state memory address drivers, etc. The inputs tolerate voltages up to 7.0 V, allowing the interface of 5.0 V systems to 3.0 V systems.
Features
• High Speed: tPD = 4.7 ns (Typ) at VCC = 3.3 V
• Low Power Dissipation: ICC = 4 A (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Low Noise: VOLP = 0.8 V (Max)
• Pin and Function Compatible with Other Standard Logic Families
