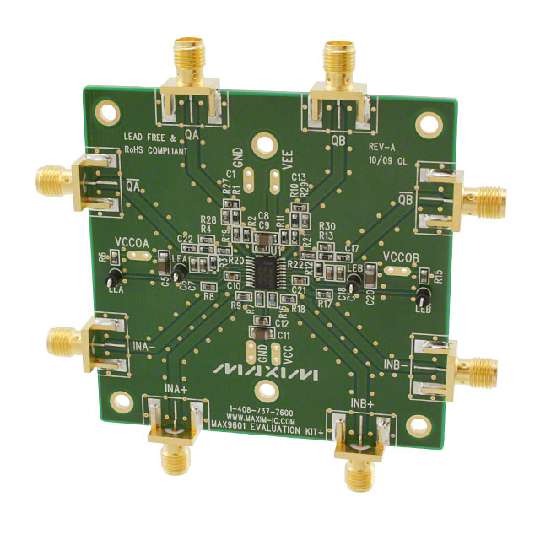

Evaluation kit for the MAX9601 dual-channel PECL output comparators. It can be used to evaluate the MAX9601"s performance in tracking high-fidelity narrow pulses, as well as conform its low-propagation delay and delay dispersion. It features test points to control the complementary latch-enable control inputs and also provides resistor footprints to evaluate the MAX9601"s adjustable hysteresis feature. Suitable for use in high-speed instrumentation high-speed triggering, line receiving/signal restoration, scope/logic analyser front ends, threshold and peak detection, VLSI and high-speed memory ATE.
Input range -2.2V to +3V with +5V/-5.2V supplies
Input range -1.2V to +4V with +6V/-4.2V supplies
SMA connectors to access differential inputs and outputs
Differential PECL outputs
Latch enable
Adjustable hysteresis
Output terminated for interfacing with a 50 ohm oscilloscope input
