MAX9142ESA+TMaxim IntegratedMAXIM INTEGRATED PRODUCTS MAX9142ESA+T Analog Comparator, Rail to Rail I/P, High Speed, 2, 40ns, 2.7V to 5.5V, NSOIC, 8Pins
￥
12.14

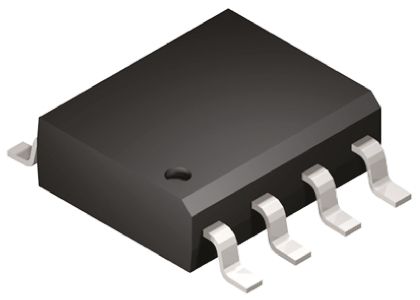

显示的图像仅供参考，应从产品数据表中获得准确的规格。
MAX9142ESA+TMaxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MAX9142ESA+T
百芯编号#:
CM3977193
价格(CNY):
￥
12.14
百芯库存:
103
个
库存地点:
可供应量:
100
个在库
此为供应商库存，需要与销售确认
产品类别:
比较器
产品描述:
MAXIM INTEGRATED PRODUCTS MAX9142ESA+T Analog Comparator, Rail to Rail I/P, High Speed, 2, 40ns, 2.7V to 5.5V, NSOIC, 8Pins
The MAX9142ESA+T is a low power, rail to rail, dual high speed comparator in 8 pin NSOIC package. This single supply comparator is optimized for systems powered from 3V or 5V supply. It combines high speed, low power and rail to rail inputs. The input common mode range of the device extends beyond both power supply rails. The output pulls to within 0.3V of either supply rail without external pull-up circuitry making this device ideal for interface with both CMOS and TTL logic. All input and output pins can tolerate a continuous short circuit fault condition to either rail. Internal hysteresis ensures clean output switching even with slow moving input signals. The MAX9142 is higher speed, lower power and lower cost upgrades to industry standard MAX941/MAX942/MAX944 comparators. It is used in line receivers, battery powered systems, threshold detectors/discriminators, 3V/5V systems, zero crossing detectors and sampling circuits.
Supply voltage range is 2.7V to 5.5V
Operating temperature range from -40°C to 85°C
Fast propagation delay of 40ns (10mV overdrive)
150µA supply current per comparator (VCM = VCC = 3V)
Outputs swing of 300mV of power rails
Input offset voltage of 0.5mV at TA = +25°C and input offset current of 8nA at TA = -40°C to +85°C
CMRR of 80µV/V at VCC = 5.5V and PSRR of 800µV/V at 2.7V
