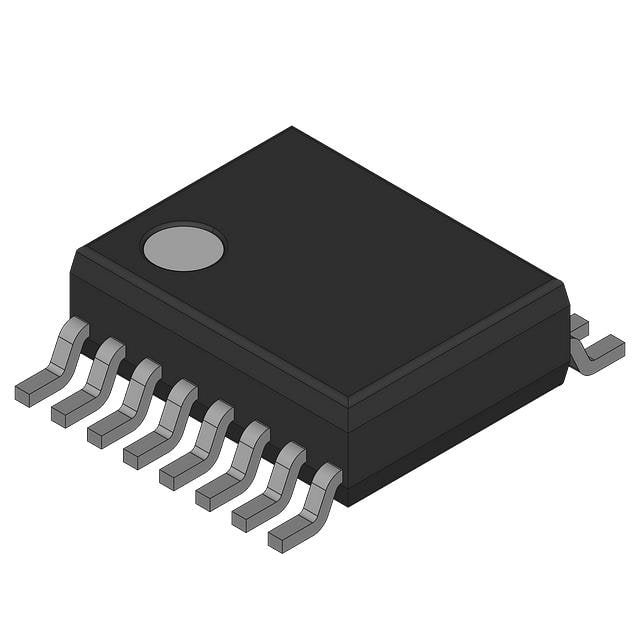

The MAX6653/MAX6663/MAX6664 are ACPI-compliant local and remote-junction temperature sensors and fan
controllers. These devices measure their own die temperature, as well as the temperature of a remote-PN junction and control the speed of a DC cooling fan based on the measured temperature. Remote temperature measurement accuracy is ±1°C from +60°C to +100°C. Temperature measurement resolution is 0.125°C for both local and remote temperatures.
Features
♦Remote-Junction Temperature Sensor Within
±1°C Accuracy (+60°C to +100°C)
♦ACPI-Compatible Programmable Temperature Alarms
♦0.125°C Resolution Local and Remote-Junction Temperature Measurement
♦Programmable Temperature Offset for System Calibration
♦SMBus 2-Wire Serial Interface with Timeout
♦Automatic or Manual Fan-Speed Control
♦PWM Fan Control Output
♦Fan-Speed Monitoring and Watchdog
♦Fan Fault and Failure Indicators
♦Compatible with 2-Wire or 3-Wire Fans (Tachometer Output)
