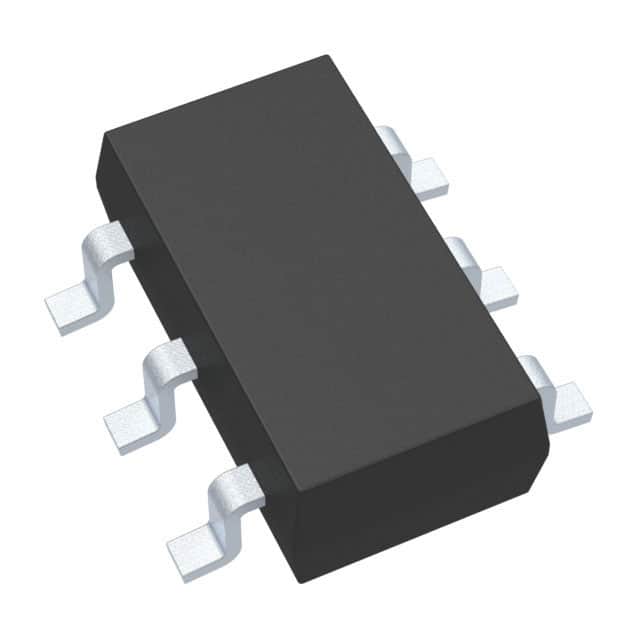

The MAX6071BAUT41+T from Maxim Integrated Products is a low noise, high precision series voltage reference with 4.1V output voltage in 6 pin SOT-23 package. This device consumes 150µA (TA = 25°C) of supply current and can sink and source up to 10mA of load current. The low drift and low noise specifications enable enhanced system accuracy, making these devices ideal for high precision industrial applications. This device is used in high accuracy industrial and process control, precision instrumentation, precision current sources, high resolution ADCs and DACs.
6 pin SOT-23 package reduces system board space
Operating temperature range from -40°C to 125°C
Output voltage accuracy of 0.08%, output current of ±10mA
Output voltage temperature drift of 2ppm/°C
Supply voltage range from 4.3V to 5.5V
Low 1/f noise voltage of 9.6µVP-P (0.1Hz to 10Hz, COUT = 0.1µF)
High ripple rejection of 80dB at F=60Hz
Low dropout voltage of 75mV at IOUT = 10mA
Stable performance over temperature and time improves system accuracy
