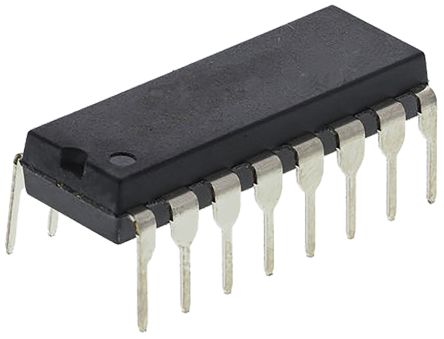

The MAX536ACPE+ from Maxim Integrated Products is a calibrated, quad, 12bit, voltage-output digital to analogue converter with serial interface in 16 pin DIP package. It contains four 12bit voltage output DAC that are easily addressed using a simple 3-wire serial interface. It includes a 16bit data-in/data-out shift register and each DAC has a double buffered input composed of an input register and DAC register. DAC is an "inverted" R-2R ladder networks that convert 12bit digital inputs into equivalent analogue output voltages in proportion to applied reference voltage inputs. The serial interface is compatible with SPI/QSPI, MICROWIRE and allows input and DAC registers to be updated independently or simultaneously with a single software command. The DAC registers can be simultaneously updated with a hardware LDAC (active-low) pin. All logic inputs are TTL/CMOS compatible. It is used in ATE, digital offset and gain adjustment and microprocessor-controlled systems.
Supply voltage range is 10.8V to 13.2V, -4.5V to -5.5V
Operating temperature range from 0°C to +70°C
Power-on reset, total unadjusted error of ±1LSB at TA = +25°C
Integral nonlinearity of ±1/2LSB and differential nonlinearity of ±1LSB
Full 12bit performance without adjustments, PSRR of ±0.02LSB/V at TA = +25°C, 10.8V < VDD < 13.2V
Buffered voltage output, reference 3dB bandwidth of 700KHz at VREF = 2VP-P
Maximum positive supply current is 18mA at TA = +25°C
