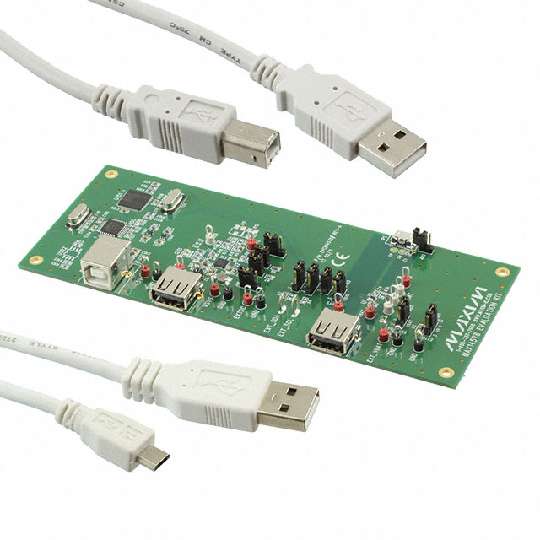

The MAX14578EVKIT# from Maxim Integrated Products is a MAX14578 evaluation kit. The MAX14578 evaluation kit (EV kit) provides a proven design to evaluate the MAX14578 USB battery charger detector in a 12 bump wafer-level package (WLP) which communicates over I2C. The IC features charger detection compliant to USB battery charging revision 1.1, dedicated charger detection, Apple charger detection, China YD/T1591-compliant charger detection and USB pass-through communication. The EV kit has various power options to separate the charging current from the system current. The EV kit is self-powered through USB but needs external power to demonstrate charging. The EV kit features the MAX8903A 1-cell lithium-ion (Li+) DC-DC USB charger for interfacing with the MAX14578 in an application setting. The EV kit PCBs come with a MAX14578EEWC+ installed.
Windows XP, Windows Vista and Windows 7 compatible software
GUI simplifies learning the IC"s operation
Proven PCB layout
Fully assembled and tested
Includes MAX8903A USB charger for application testing
Cell Phones; DSC and Camcorder; e-Book Readers; Media Players; MID (Mobile Internet Device)
