MAX11213EEE+Maxim IntegratedMAXIM INTEGRATED PRODUCTS MAX11213EEE+ Analog to Digital Converter, Ultra Low Power, 16Bit, 480 SPS, Single, 2.7V, 3.6V, QSOP
￥
7.54

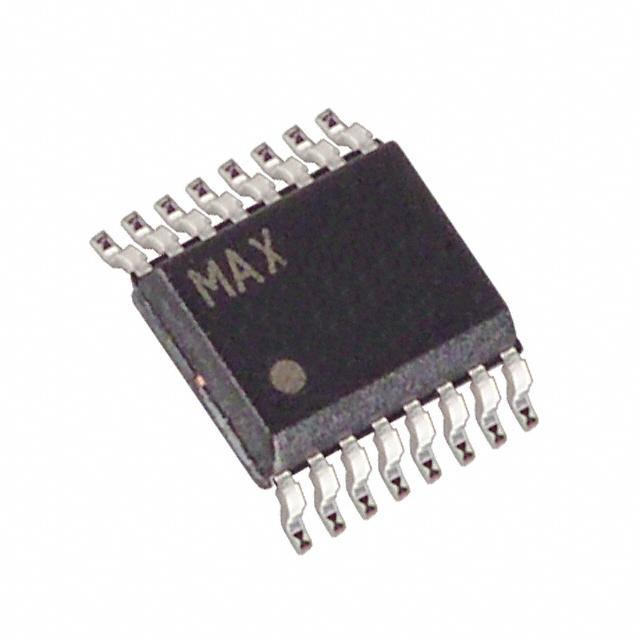

显示的图像仅供参考，应从产品数据表中获得准确的规格。
MAX11213EEE+Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MAX11213EEE+
百芯编号#:
CM54765234
价格(CNY):
￥
7.54
百芯库存:
201
个
库存地点:
可供应量:
172
个在库
此为供应商库存，需要与销售确认
产品类别:
AD转换器,模数
产品描述:
MAXIM INTEGRATED PRODUCTS MAX11213EEE+ Analog to Digital Converter, Ultra Low Power, 16Bit, 480 SPS, Single, 2.7V, 3.6V, QSOP
The MAX11213EEE+ is a 16bit, single channel, ultra low power, delta sigma ADC with programmable gain and GPIO in 16 pin QSOP package. It is an ultra low power (< 300µA active current), high-resolution, serial-output ADC. This device provides the highest resolution per unit power in the industry and is optimized for applications that require very high dynamic range with low power, such as sensors on a 4mA to 20mA industrial control loop. Optional input buffers provide isolation of the signal inputs from the switched capacitor sampling network allowing this converter to be used with high-impedance sources without compromising available dynamic range or linearity. The device provides a high-accuracy internal oscillator that requires no external components. When used with the specified data rates, the internal digital filter provides more than 100dB rejection of 50Hz or 60Hz line noise. The device is configurable using the SPI interface.
Supply voltage range is 2.7V to 3.6V
Operating temperature range from -40°C to 85°C
Sleep mode current drain is less than 0.4µA
570nVrms noise at 10sps, ±3.6VFS input
Relative accuracy of 3ppm INL (typ), 20ppm (max)
Four SPI controlled GPIOs for external mux control
Optional input buffers on both signal and reference inputs
Greater than 100dB (min) 50Hz/60Hz rejection
On demand offset and gain self calibration and system calibration
