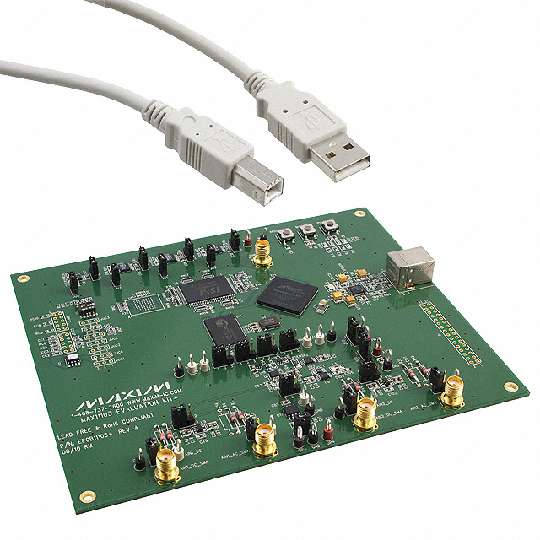

The MAX11103EVKIT+ from Maxim Integrated Products is a MAX11103 evaluation kit (EV kit). This EV kit is a fully assembled and tested PCB that evaluates the MAX11103 2-channel, 12bit, SPI compatible 3Msps analogue to digital converter (ADC). The EV kit also includes Windows XP, Windows Vista and Windows 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the device. The EV kit comes installed with a MAX11103AUB+ in a 10-pin FMAX® package with an exposed pad.
48MHz SPI interface
Time domain, frequency domain and histogram plotting in the EV kit software
Frequency, RMS, Min, Max and average DC calculations in the EV kit software
Collects up to one mega samples
On-board input buffers
USB-PC connection
Proven PCB layout
Fully assembled and tested
Automotive Systems; Battery-Operated Systems; Communication Systems; Data Acquisition; Medical Instrumentation; Portable Data Logging
