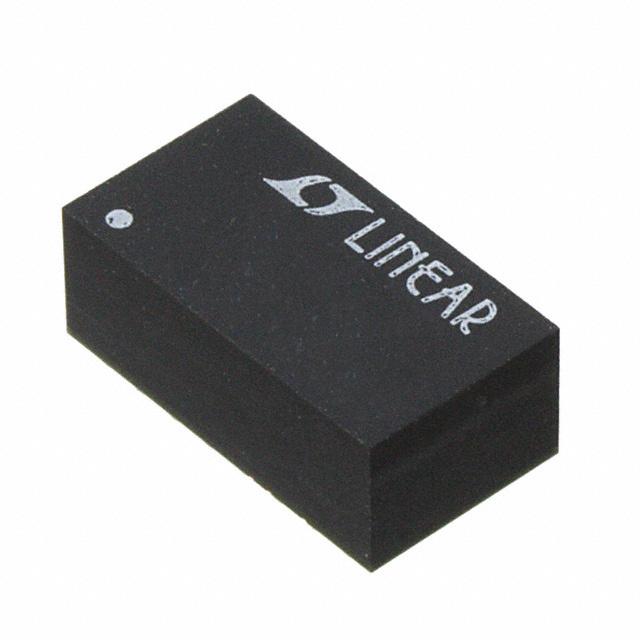

The LTM8045MPY#PBF is an inverting or SEPIC µModule® DC/DC Converter that can be configured as a SEPIC or inverting converter by simply grounding the appropriate output rail. In a SEPIC configuration the regulated output voltage can be above, below or equal to the input voltage. TheLTM8045 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output capacitors and small resistors to set the output voltage and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.
Programmable soft-start
User configurable undervoltage lockout
700mA at VIN = 12V, VOUT = 2.5 or -2.5V Output current
375mA at VIN = 12V, VOUT =15 or -15V Output current
