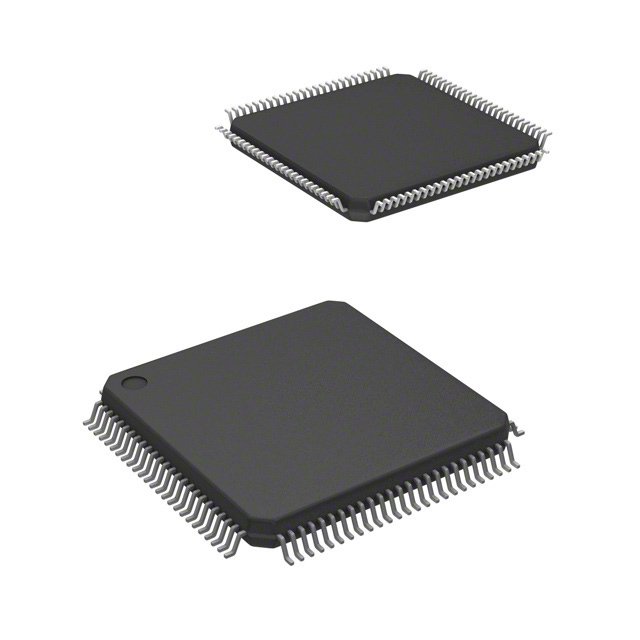

The LPC2368FBD100,551 is an ARM7 Microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 72MHz. Features include up to 256kB of flash memory, up to 58kB of RAM, Ethernet MAC, USB device/host/OTG, DMA controller, SD/MMC, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I²C, I²S, 8-channel 10-bit ADC, 10-bit DAC, 2 PWM, 4 general purpose timers, low power real-time clock with separate battery supply and up to 70 general purpose I/O pins.
Dual advanced high-performance bus (AHB) system
Advanced vectored interrupt controller (VIC)
General purpose DMA controller (GPDMA) on AHB
Ethernet MAC with associated DMA controller
Four UARTs with fractional baud rate generation
USB 2.0 full-speed device with on-chip PHY
CAN controller with two channels
Two SSP controllers, with FIFO and multi-protocol capabilities
I2S (Inter-IC Sound) interface for digital audio input or output
SD/MMC memory card interface
70 General purpose I/O pins with configurable pull-up/down resistors
10-bit ADC with input multiplexing among 6 pins and 10-bit DAC
One PWM/timer block with support for three-phase motor control
Standard ARM test/debug interface for compatibility with existing tools
Emulation trace module supports real-time trace
Four reduced power modes of idle, sleep, power-down and deep power-down
Four external interrupt inputs configurable as edge/level sensitive
Processor wake-up from Power-down mode via any interrupt
Two independent power domains allow fine tuning of power consumption
Each peripheral has its own clock divider for further power saving
ESD sensitive device, take proper precaution while handling the device.
