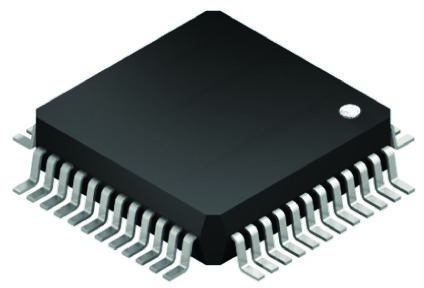

The LPC11U37FBD48/401 is a 32-bit Microcontroller based on ARM Cortex-M0 core with RISC architecture operates at a maximum frequency of 50MHz. The device incorporates 128kB internal flash, 10kB internal RAM, 4kB EEPROM, two SSP interfaces, four general purpose counters/timers, 8-channel 10-bit A/D converter with sample rates of up to 400ksps, full speed USB 2.0 device and 40 general-purpose I/O pins. This device also features peripherals like one RS-485/EIA-485 USART with support for synchronous mode and smart card interface, one inter-integrated circuit (I2C) and two serial peripheral interface (SPI) modules. It is offering low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.
ARM Cortex-M0 built-in nested vectored interrupt controller (NVIC)
Non-maskable interrupt (NMI) input selectable from several input sources
System tick timer
In-system programming (ISP) and In-application programming (IAP)
ROM-based USB drivers. flash updates via USB supported
ROM-based 32-bit integer division routines
Standard JTAG (Joint test action group) test interface for BSDL
Serial wire debug
Up to 8 GPIO pins can be selected as edge and level sensitive interrupt sources
High-current source output driver (20mA) on one pin
High-current sink driver (20mA) on true open-drain pins
Programmable windowed watchdog timer (WWDT)
USB 2.0 Full-speed device controller
Crystal oscillator with an operating range of 1MHz to 25MHz
