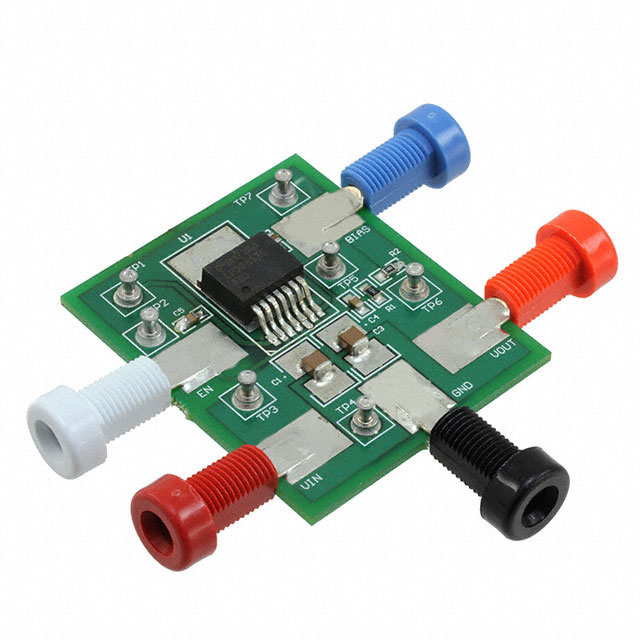

The LP38853EVAL evaluation board is designed to allow the evaluation of the LP38853-ADJ, 3A Fast response high accuracy adjustable LDO linear regulator with enable and soft start. Each board is assembled and tested in the factory. This evaluation board has the TO-263 7-lead package mounted, and the output voltage is set to 1.20V. The fast transient response of this device makes it suitable for use in powering DSP, Microcontroller core voltages and switch mode power supply post regulators. The part is available in the SO PowerPAD 8pin, PFM 7pin, and DDPAK 7pin packages.
Adjustable VOUT range of 0.8V to 1.8V
Wide voltage bias supply operating range of 3.0V to 5.5V
Stable with 10µF ceramic capacitors
Dropout voltage of 240mV (typical) at 3A load current
