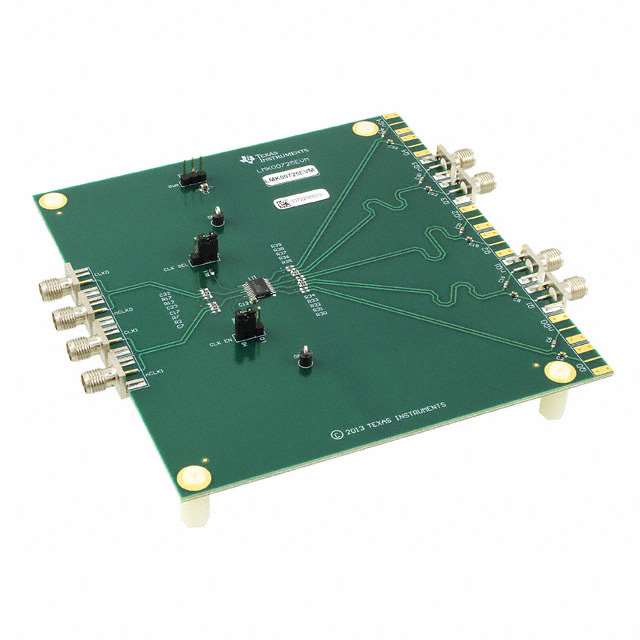

The LMK00725EVM is an evaluation module for LMK00725 fan-out buffer. The LMK00725 is a low skew, high performance clock fan-out buffer which can distribute up to five 3.3V LVPECL outputs from one of two inputs, which can accept differential or single ended inputs. The clock enable input is synchronized internally to eliminate runt or glitch pulses on the outputs when the clock enable pin is asserted or deasserted. The low additive jitter and phase noise floor and ensured output and part to part skew characteristics make the LMK00725 ideal for applications demanding high performance and repeatability.
Easy to use evaluation board to fan-out up to five LVPECL clocks with low phase noise/jitter
Accepts differential or single ended/LVCMOS input clock
Device control pins configurable through jumpers
Board power at 3.3V for VCC
Two differential input pairs
Synchronous clock enable
ESD sensitive device, take proper precaution while handling the device.
