The LM2675 series of regulators are monolithic integrated circuits built with a LMDMOS process.
These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5.0V, 12V, and an adjustable output version.
1FEATURES
234• Efficiency up to 96%

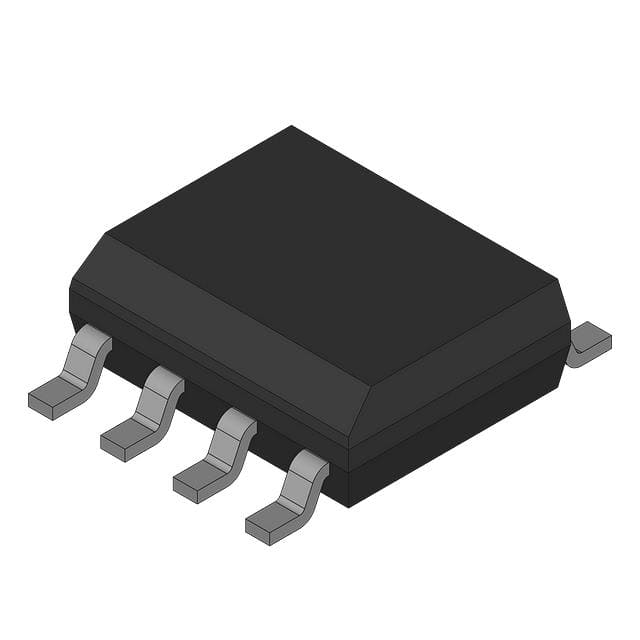

• Available in 8-pin SOIC and PDIP Packages
and a 16-pin WSON Package
• Computer Design Software LM267X Made
Simple (version 6.0)
• Simple and Easy to Design with
• Requires Only 5 External Components
• Uses Readily Available Standard Inductors
• 3.3V, 5.0V, 12V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range: 1.21V to 37V
• ±1.5% Max Output Voltage Tolerance Over Line and Load Conditions
