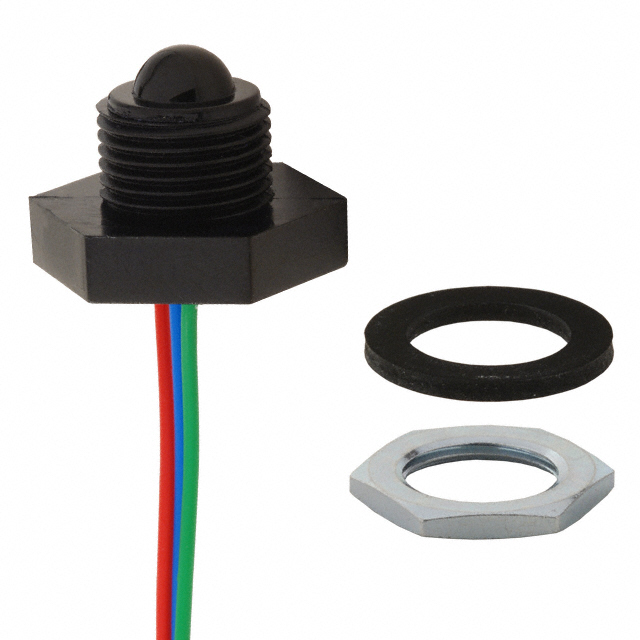

The LLE101101 is an enhanced Liquid Level Sensor incorporates a photo-transistor trigger which provides a digital output that denotes the presence or absence of liquid. This sensor incorporates reverse polarity, over voltage, short-circuit and transient protection.
Solid state reliability, no moving parts
Miniature size
Very large choice of sensing media
Fast response time
Accurate and repeatable switching point
Easy to install, saving assembly time
High in air output type
250mm lead wires termination type
Vamac rubber seal washer
5mA nominal supply current
-40 to 125°C temperature range
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
