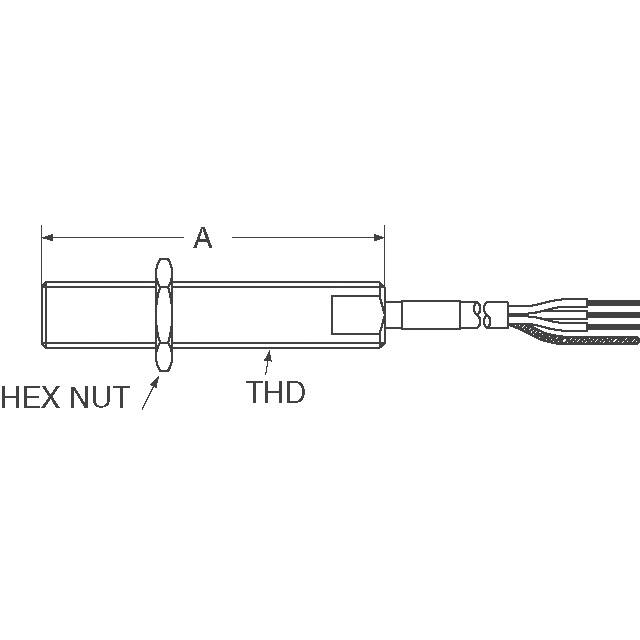

The LCZ460 is a hall-effect zero Speed Sensor features durable, cost-effective solution in most harsh environments. The sensor is available in 15.9mm (5/8-inch) diameter, 50.8mm (2-inch) length. The stainless steel package is simple to install and adjust. It does not require rotational orientation.
Omni-directional sensor to target orientation
Digital output
Small size
Low power consumption
20mA supply current and output sinking
30VDC high voltage
4µs rise and fall time
-40 to 125°C operating temperature
Stainless steel housing
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
