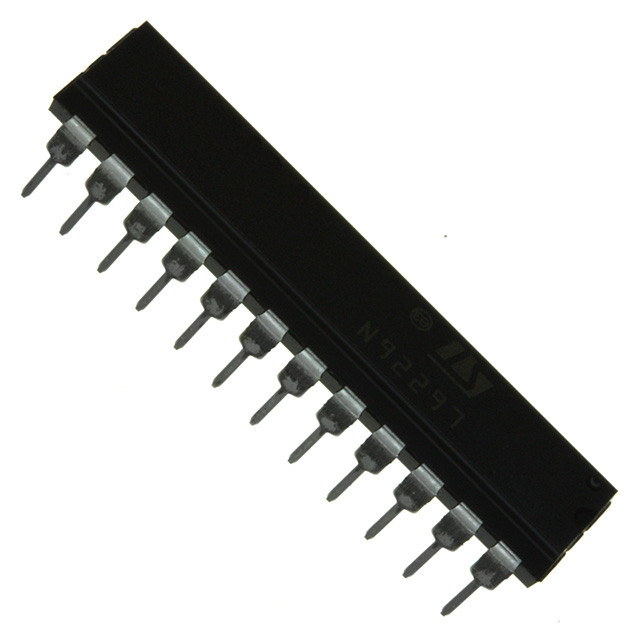

The L6226 is a DMOS dual full bridge designed for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6226 features thermal shutdown and a non-dissipative overcurrent detection on the high side power MOSFETs plus a diagnostic output that can be easily used to implement the overcurrent protection.
**Key Features**
Undervoltage lockout
Thermal shutdown
Integrated fast free wheeling diodes
Paralleled operation
Diagnostic output
Operating supply voltage from 8 to 52 V
RDS(on) 0.73 Ω typ. value @ TJ = 25 °C
2.8 A output peak current (1.4 A DC)
Programmable high side overcurrent detection and protection
