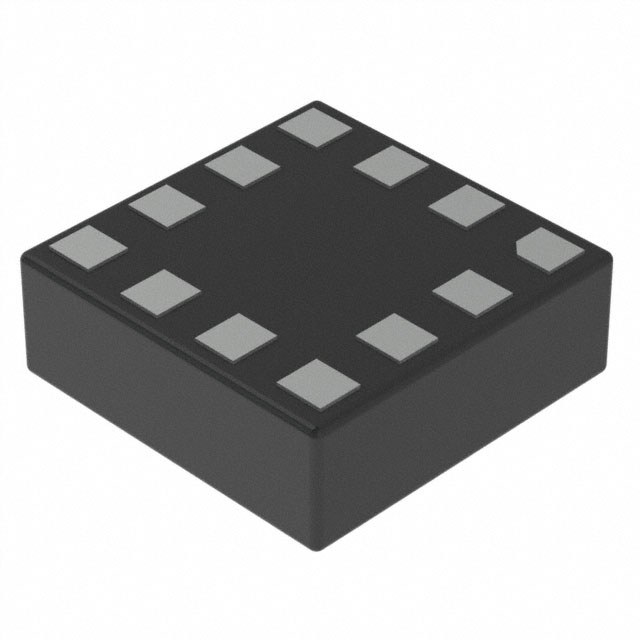

The IIS2DLPC is an ultra-low-power high-performance three-axis linear accelerometer with digital I²C/SPI output interface which leverages on the robust and mature manufacturing processes already used for the production of micromachined accelerometers. The IIS2DLPC has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.
±2g/±4g/±8g/±16g full scale
Multiple operating modes reconfigurable on the fly: from ultra-low-power to high-performance highresolution mode
Ultra-low power consumption: 50nA in power-down mode, below 1µA in active low-power mode, 120µA in high-performance mode
Output data rates from 1.6Hz to 1600Hz; bandwidth up to 800Hz
Single data conversion on demand
Very low noise: down to 90µg/√Hz
32level FIFO and 2 independent programmable interrupts
