HSCDANN015PAAA5HoneywellTruStability® Board Mount Pressure Sensor - Compensated/Amplified: HSC Series, High Accuracy, ± 1% Total Error Band, DIP, Single Axial Barbed Port, 15psi Absolute, Amplified Analog Output, 10% to 90% Vdd, 5V Supply, Dry Gases Only, No Special Options
￥
283.09

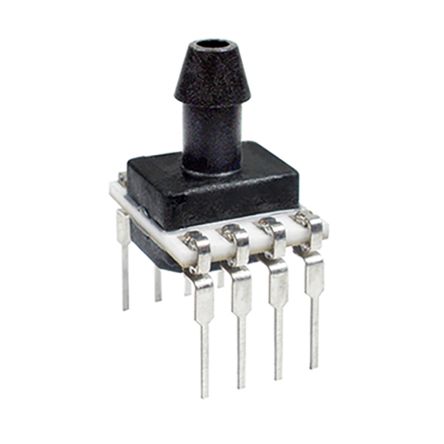

显示的图像仅供参考，应从产品数据表中获得准确的规格。
HSCDANN015PAAA5Honeywell
制造商:
Honeywell
制造商型号#:
HSCDANN015PAAA5
百芯编号#:
CM43722136
价格(CNY):
￥
283.09
百芯库存:
305
个
库存地点:香港
可供应量:
196
个在库
此为供应商库存，需要与销售确认
产品类别:
压力,传感器
产品描述:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: HSC Series, High Accuracy, ± 1% Total Error Band, DIP, Single Axial Barbed Port, 15psi Absolute, Amplified Analog Output, 10% to 90% Vdd, 5V Supply, Dry Gases Only, No Special Options
The TruStability™ Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range. The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz.
The SSC Series is calibrated over the temperature range of –20° C to 85° C [–4° F to 185° F]. The sensor is characterized for operation from a single power supply of either 3.3 VDC or 5.0 VDC.
These sensors measure absolute, differential, and gage pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Differential versions allow application of pressure to either side of the sensing diaphragm. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere.
They are designed and manufactured according to standards in ISO 9001.
