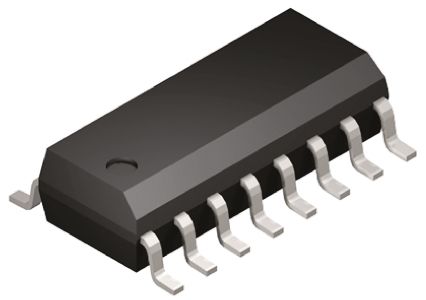

The HIN202ECBNZ is a ±15kV ESD-protected +5V powered RS-232 Transmitter/Receiver. The HIN202E family of RS-232 transmitters/receivers interface circuits meet all EIA high-speed RS-232E and V.28 specifications and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10 and -10V supplies from the 5V supply. The family of devices offers a wide variety of high-speed RS-232 transmitter/receiver combinations to accommodate various applications.
High speed ISDN compatible 230kBps
ESD protection for RS-232 I/O pins to ±15kV (IEC61000)
Meets All RS-232E and V.28 specifications
Requires only 0.1µF or greater external capacitors
Requires only single +5V power supply
Onboard voltage doubler/inverter
5mA Low power consumption (typical)
1µA Low power shutdown function (typical)
Three-state TTL/CMOS receiver outputs
Multiple drivers
±10V Output swing for +5V input
300R Power-off source impedance
Output current limiting
TTL/CMOS compatible
Multiple receivers
±30V Input voltage range
3 to 7kR Input impedance
0.5V Hysteresis to improve noise rejection
ESD sensitive device, take proper precaution while handling the device.
