The HFBR-0400Z Series of components is designed to provide cost effective, high performance fiber optic communication links for industrial, power generation, power distribution, medical, transportation and gaming applications.

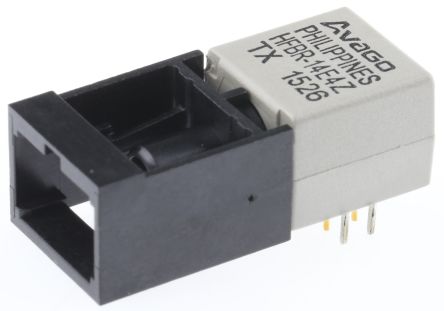

The HFBR-14E4Z fiber optic transmitter is designed to operate with the Broadcom HFBR-24x2Z and HFBR-24x6Z fiber optic receiver up to 160MBd. This part is characterized with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS® fiber optic cable.
This product is also available in other popular industry-standard connectors: ST, SMA and FC.
### Features
Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards
Low Cost Transmitter
Data Rate up to 160MBd
Link Distances up to 2.7km
Specified with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 mm HCS Fiber
Wide Operating Temperature Range -40C to +85C
820nm AlGaAs Emitters 100% Burn-In Ensures High Reliability
