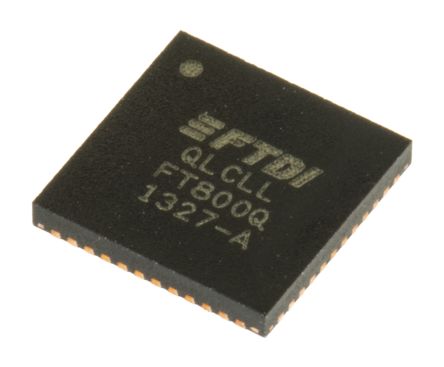

The FT800Q-R is a Display, Audio and Touch Controller, provides a powerful feature set to create dynamic HMI interfaces. The device supports line by line graphics rendering to 1/16 of a pixel on displays with resolution up to 512 x 512 with 262K colours. The chip includes a touch controller for sensing touch feedback from a TFT display with a resistive touch panel as well as a sound synthesizer and audio playback with a PWM output to drive a speaker.
Single Chip for Display, Audio and Touch Control
Up to 512 x 512 Pixel Resolution
262K Colours (6 Red, 6 Green, 6 Blue)
Anti-aliasing
2-bit Colour Dither
Programmable HSYNC/VSYNC Timing
Backlight Control
Resistive Touch Sense
Objective Oriented Programming Approach
Embedded Widgets to Assist with Creating Complex Images
Mono Audio Output
64 In-built Polyphonic Tones
Decode for mono 8-bit Linear PCM, 4-bit ADPCM and µ-Law coding format at frequencies from 8 to 48kHz
