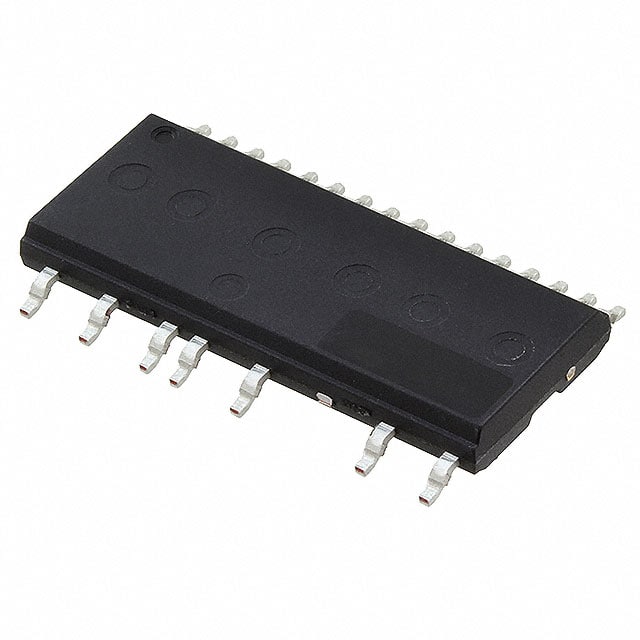

The FSB50660SFS is an advanced Motion SPM 5 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors such as refrigerators, fans and pumps. These modules integrate optimized gate drive of the built-in MOSFETs(SuperFET technology) to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts and thermal monitoring. The built-in high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module"s internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms.
Features
---
|
UL Certified No. E209204 (UL1557)
600 V RDS(on) = 700 mΩ(Max) SuperFET MOSFET 3-Phase Inverter with Gate Drivers and Protection
Built-in Bootstrap Diodes Simplify PCB Layout
Separate Open-Source Pins from Low-Side MOSFETS for Three-Phase Current-Sensing
Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input
Optimized for Low Electromagnetic Interference
HVIC Temperature-Sensing Built-in for Temperature Monitoring
HVIC for Gate Driving and Under-Voltage Protection
