These Integrated Load Switches are produced using Fairchild"s proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particularly suited for low voltage high side load switch application where low conduction loss and ease of driving are needed.
Features
---
|
VDROP=0.2V @ VIN=12V, IL=1A, VON/OFF=1.5 to 8V
VDROP=0.3V @ VIN=5V, IL=1A, VON/OFF=1.5 to 8V
High density cell design for extremely low on-resistance
VON/OFF Zener protection for ESD ruggedness
>6KV Human Body Model

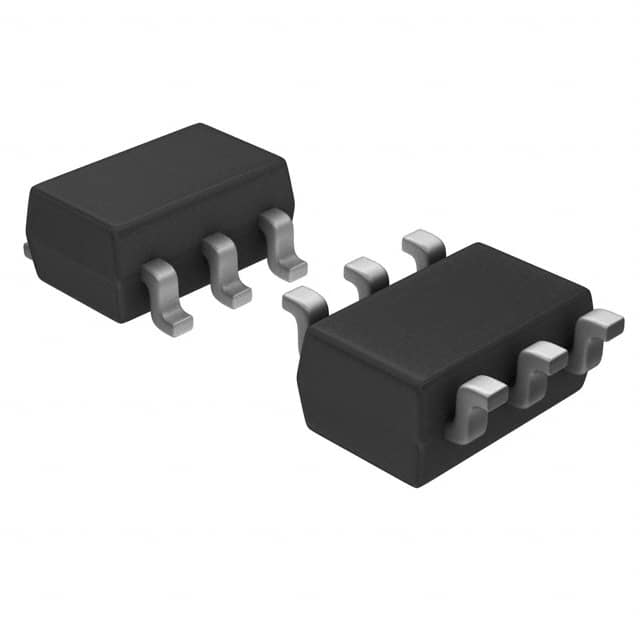

SuperSOT™-6 package design using copper lead frame for superior thermal and electrical capabilities
