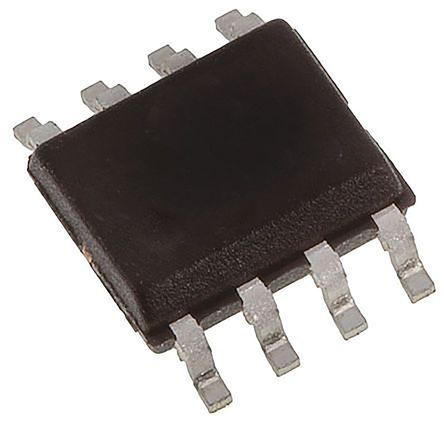

The DS75176BM/NOPB is a high-speed differential TRI-STATEbus Line Transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range (+12 to -7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of +12 to -7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the 0 to 70°C temperature and 4.75 to 5.25V supply voltage range.
22ns Driver propagation delay
Thermal shutdown protection
70mV Typical receiver hysteresis
Meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
