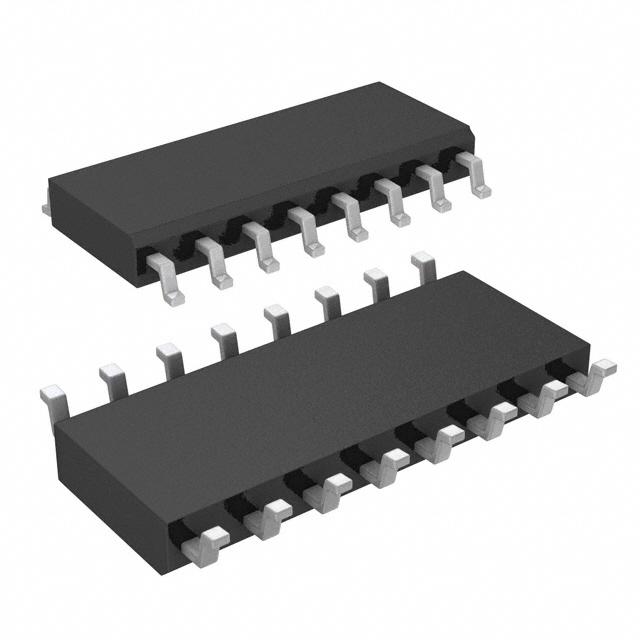

The DG508AEWE+T from Maxim Integrated Products is a monolithic CMOS analogue multiplexer in 16 pin WSOIC package. The device is a single 8-channel (1 of 8) multiplexer, this multiplexer will not latch-up if the power supply is turned off with the input signal still present. It has faster enable switching times and significantly lower leakage currents, consumes significantly less power, making it ideal for portable equipment. Typical applications include control systems, data logging systems, aircraft heads-up displays, data-acquisition systems and signal routing.
Supply voltage range is ±4.5V to ±18V
Operating temperature range from -40°C to 85°C
Break before make switching
Improved second source
Plug-in upgrades for the industry standard DG508A
Symmetrical, bidirectional operation
Logic and enable inputs, TTL and CMOS compatible
Monolithic, low power CMOS design
Analog signal from -15V to +15V
Aircraft Heads-Up Displays; Control Systems; Data Acquisition Systems; Data Logging; Signal Routing
