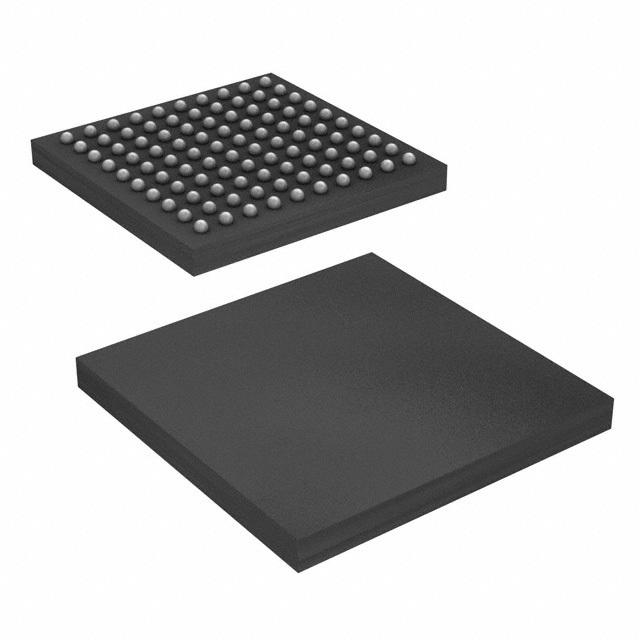

The CYP15G0101DXB[1] single-channel HOTLink II™ transceiver is a point-to-point communications building block allowing the transfer of data over a high-speed serial link (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 195 to 1500 MBaud.
**Features**
■ Second-generation HOTLink® technology
■ Compliant to multiple standards
❐ ESCON®, DVB-ASI, fibre channel and gigabit ethernet (IEEE802.3z)
❐ CPRI™ compliant
❐ CYV15G0101DXB compliant to SMPTE 259M and SMPTE 292M
❐ 8B/10B encoded or 10-bit unencoded data
■ Single-channel transceiver operates from 195 to 1500 MBaud serial data rate
■ Selectable parity check/generate
■ Selectable input clocking options
■ Selectable output clocking options
■ MultiFrame™ Receive Framer
❐ Bit and byte alignment
❐ Comma or full K28.5 detect
❐ Single- or multi-byte framer for byte alignment
❐ Low-latency option
■ Synchronous LVTTL parallel input and parallel output interface
■ Internal phase-locked loops (PLLs) with no external PLL components
■ Dual differential PECL-compatible serial inputs
❐ Internal DC-restoration
■ Dual differential PECL-compatible serial outputs
❐ Source matched for driving 50Ω transmission lines
❐ No external bias resistors required
❐ Signaling-rate controlled edge-rates
■ Optional elasticity buffer in receive path
■ Optional phase align buffer in transmit path
■ Compatible with
❐ Fiber-optic modules
❐ Copper cables
❐ Circuit board traces
■ JTAG boundary scan
■ Built-in self-test (BIST) for at-speed link testing
