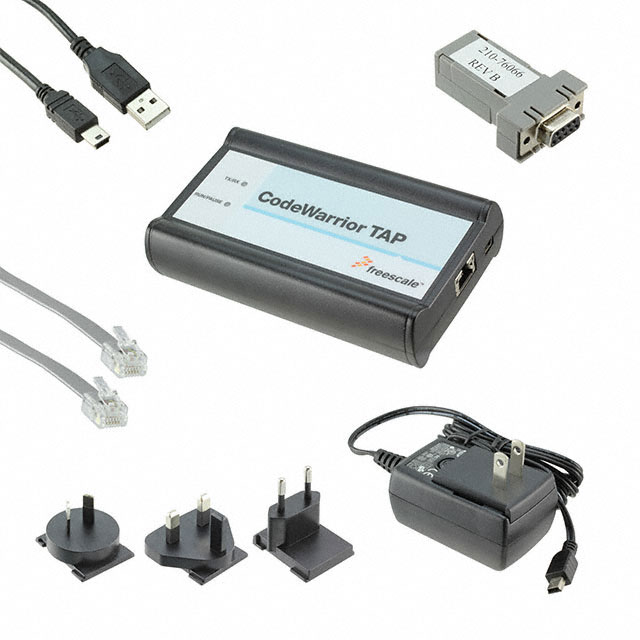

The CodeWarrior TAP enables NXP target system debugging via a standard debug port (usually JTAG) while connected to a developer"s workstation via Ethernet or USB. The CodeWarrior TAP may also be referred to by industry standard terms such as probe, JTAG probe, JTAG emulator or target probe. Using the CodeWarrior TAP"s Ethernet connection, developers can debug systems remotely or more effectively share a single system with multiple developers. When a shared system is not needed, CodeWarrior TAP connects directly to the developer"s workstation with a single USB cable. Power is supplied by the USB port so that no additional cables are needed. The CodeWarrior TAP is designed to work in conjunction with NXP CodeWarrior development tools and NXP processors. It is a critical debug tool in all phases of the project and is necessary for debugging systems prior to running a fully debugged operating system.
Supports the Power Architecture, StarCore, and ColdFire™ processors
Supports all CPU core speeds
Allows you to control and debug software running in target
Allows you to debug code in cache, ROM, RAM, and flash memory
Supports 10/100 Ethernet network connection
Supports telnet access to your target systems serial port
Supports USB 2.0 high speed connection
Supports both big and little endian byte order
Control instruction execution
Display and modify target system memory
Examine and modify any processor registers
Run to breakpoints in ROM, RAM, or flash memory
Single step through source and assembly language code views
Step into, over, or out of functions
Collect and analyse real time data
Perform boundary scan testing with support from correct host level software
Program all onboard memories with support from correct host level software
