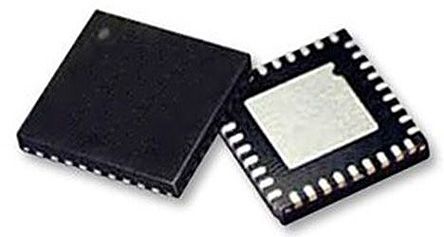

The BLUENRGQTR is a single-mode low energy wireless Network Processor compliant with Bluetooth specification v4.0. The BlueNRG can act as master or slave. The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading. The BlueNRG allows applications to meet the tight advisable peak current requirements imposed by the use of standard coin cell batteries. The maximum peak current is only 10mA at 1dBm of output power. Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life. The BlueNRG offers the option of interfacing with external microcontrollers using SPI transport layer.
Full link controller and host security
On-chip non-volatile Flash memory
AES security co-processor
Low power modes
Bluetooth low energy profiles provided separately
Integrated linear regulator and DC-DC step-down converter
Accurate RSSI to allow power control
ESD sensitive device, take proper precaution while handling the device.
