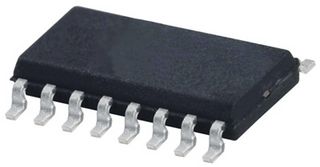

The HEF4511B is a BCD to 7-segment latch/decoder/driver with four address inputs (D0 to D3), an active HIGH latch enable input (LE), an active LOW ripple blanking input (BL), an active LOW lamp test input (LT), and seven active HIGHNPN bipolar transistor segment outputs (Qa to Qg).
Features and benefits
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
Specified from 40C to +85C and 40 C to +125 C
