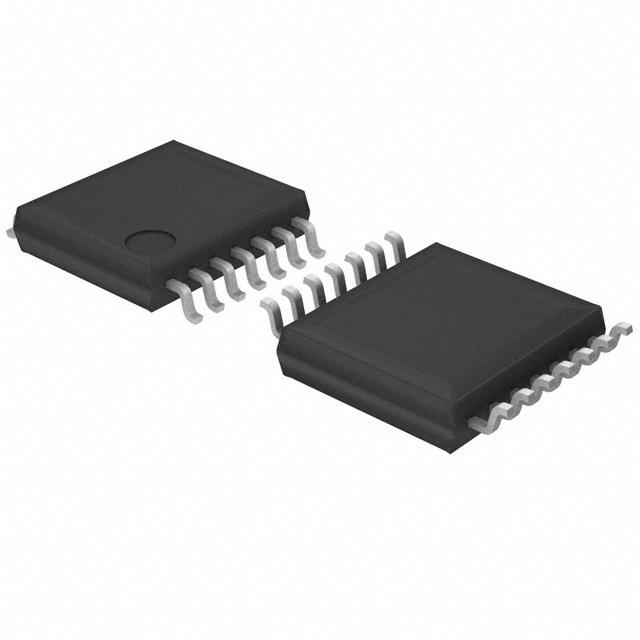

The BA4584YFV-MGE2 is an automotive low noise grand sense operational amplifier in 14 pin SSOP package. It integrates four independent op-amps on a single chip. This op-amp has some features of low noise and low distortion characteristics and can operate from ±2.0V to ±16V (split supply). It is manufactured for automotive requirements of car navigation system, car audio etc.
Automotive grade AEC-Q100 qualified
High voltage gain, low noise and low distortion
Wide operating supply voltage
Internal ESD protection circuit
Wide operating temperature range from -40°C to +105°C
High slew rate of 5V/µs, input offset voltage of 0.3mV and input offset current of 5nA
Total harmonic distortion of 0.0005% and maximum output voltage of ±13.5V
Input referred noise voltage of 5nV/Hz, input bias current of 100nA and supply current of 6mA
Large signal voltage gain of 110dB
CMRR of 80dB, PSRR of 80dB and 5MHz unity gain frequency
Electrostatic sensitive device, please take proper precautions while handling.
