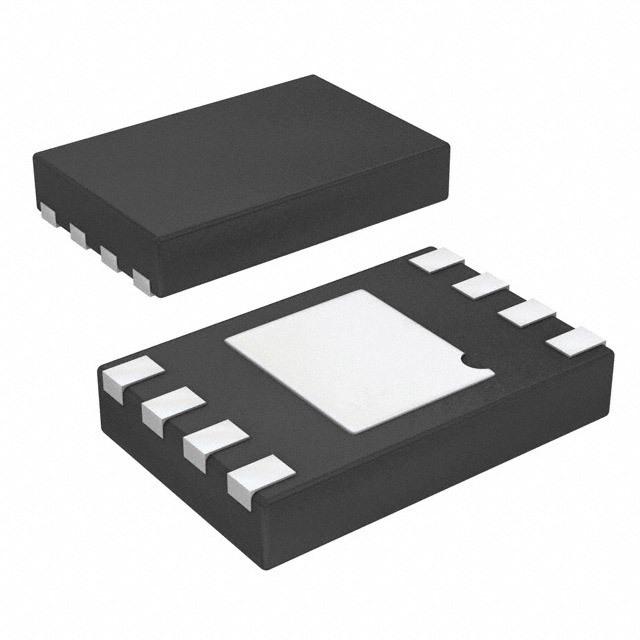

The AT25128B/256B provides 131,072/262,144 bits of serial electrically-erasable programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space saving 8-lead SOIC, 8-lead TSSOP, 8-ball VFBGA and 8-lead UDFN pack ages. In addition, the entire family is available in 1.8V (1.8V to 5.5V).
Features
• Serial Peripheral Interface (SPI) Compatible
• Supports SPI Modes 0 (0,0) and 3 (1,1)
• Data Sheet Describes Mode 0 Operation
• Low-voltage and Standard-voltage Operation
– 1.8 (VCC = 1.8V to 5.5V)
• 20 MHz Clock Rate (5V)
• 64-byte Page Mode and Byte Write Operation
• Block Write Protection
– Protect 1/4, 1/2, or Entire Array
• Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
• Self-timed Write Cycle (5 ms Max)
• High-reliability
– Endurance: 1 Million Write Cycles
– Data Retention: >100 Years
• Green (Pb/Halide-free/RoHS Compliant) Packaging Options
• Die Sales: Wafer Form, Waffle Pack, and Bumped Die
