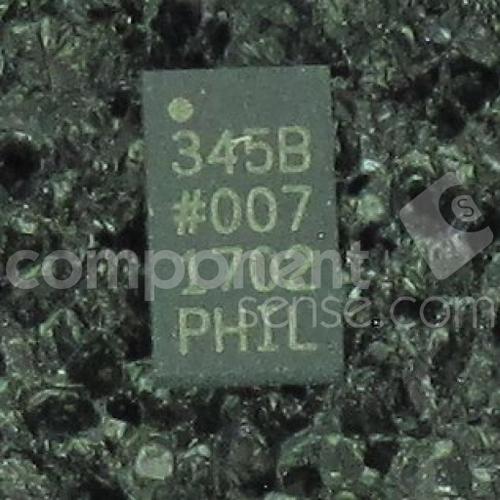

The ADXL345 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications , as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°.
Power consumption scales automatically with bandwidth
User-selectable resolution
Patent pending, embedded memory management system with FIFO technology minimises host processor load
Single tap/double tap detection
Activity/inactivity monitoring
Free-fall detection
SPI (3- and 4-wire) and I2C digital interfaces
Flexible interrupt modes map able to either interrupt pin
