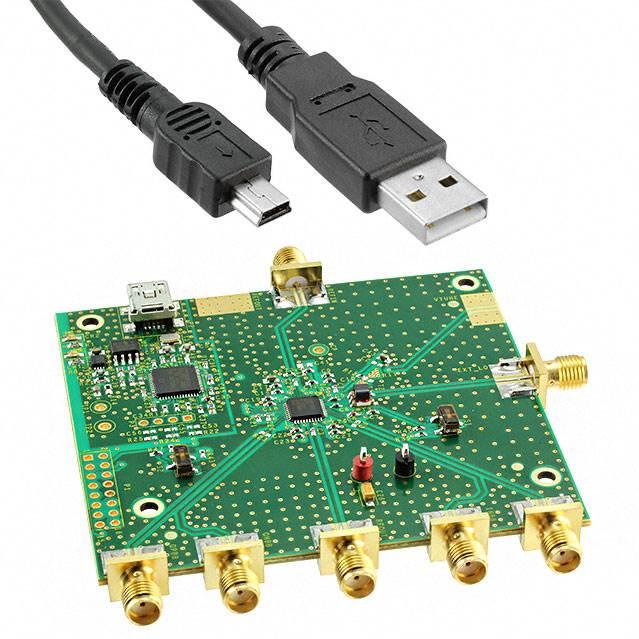

The ADRF6702-EVALZ is an evaluation board for 1200MHz to 2400MHz quadrature modulator device ADRF6702. This board is fully populated, 4-layer, Rogers 4350 based evaluation board. A 5V/300mA power supply is required. The evaluation board can be programmed through the USB port of a PC running windows XP or vista with Microsoft .NET framework 3.5 installed. The low phase noise VCO and high performance quadrature modulator make the ADRF6702 suitable for next generation communication systems requiring high signal dynamic range and linearity. The integration of the IQ modulator, PLL, and VCO provides for significant board savings and reduces the BOM and design complexity.
IQ modulator with integrated fractional-N PLL
Output frequency range is from 1200MHz to 2400MHz
Internal LO frequency range is from 1550MHz to 2150MHz
