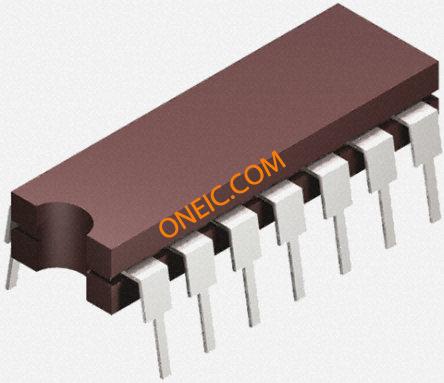

The AD532JDZ is an internally trimmed monolithic Integrated Circuit Multiplier/Divider for use with multiplication, division, squaring, square rooting and algebraic computation. It guarantees a maximum multiplying error of ±1.0% and a ±10V output voltage without the need for any external trimming resistors or output op amp. Because the AD532 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers and its monolithic construction provides significant advantages in size and reliability. It can be a direct replacement for other IC multiplier that requires external trim networks.
Pretrimmed to ±1.0%
No external components required
Guaranteed ±1.0% maximum 4-quadrant error
Differential inputs for (X1-X2) (Y1-Y2)/10V transfer function
